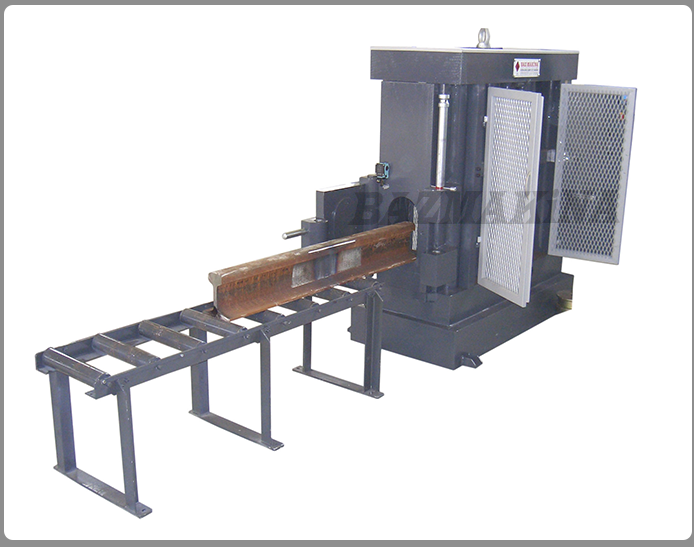

Rail Test Press Machine
250 Ton Capacity
Elongation sensor with servo motor with readable graphic display
The values are processed and displayed in the digital indicator and simultaneously transferred to the Bending test program on the PC. The start/stop/end / commands of the test and the adjustment of the pressure rate during the test are made by the computer.
The commands sent from the computer are processed by the servo control unit and the motor is controlled.
The Bending Test program is in Turkish and works on Windows operating system.
It is allowed to enter the sample information, to determine the spread charge and sequential load values at the end of the test and to report the test results through the printer.
Experiments that can be performed with the Bending Test program: max fracture load and consecutively 10% increase values from 10% of max fracture load up to 100% are applied and values are recorded. In the bending program, compression and sequential loading tests can be performed until the sample is deformed in the direction of bending.
Hydraulic Power Unit
64 lt/min HAWE radial piston hydraulic pump with fixed flow rate
5lt/min gear pump imported
1 HP AC motor 1pc
1 Electric directional valve
1 motor speed control unit
2 safety valves
15 lt. capacity hydraulic oil tank
15 lt. SHELL Vitrae hydraulic oil
1 set of high strength hydraulic hoses and fittings
1 ergonomic, durable piano panel
Servo Control Unit
(with operator panel suitable for automatic and manual use)
Flexural test prog.
(It can run on Windows XP.)
Pre-calibration, transportation, mechanical workmanship, assembly, commissioning and training belong to our company.
